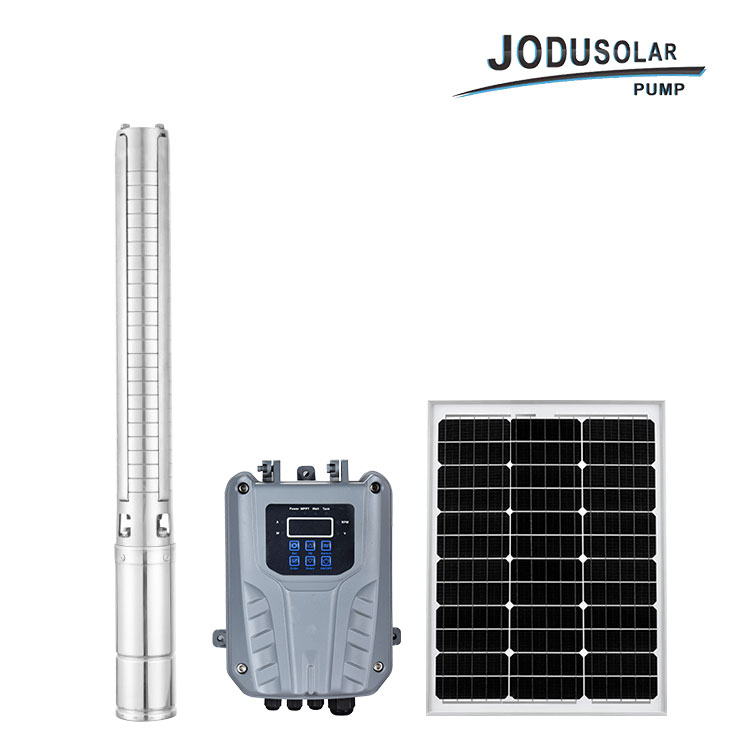

3inch 200w-1100w Solar Pump With Plastic Impeller
  • 3inch 200w-1100w Solar Pump With Plastic Impeller3inch 200w-1100w Solar Pump With Plastic Impeller

3inch 200w-1100w Solar Pump With Plastic Impeller

Judo is a large-scale Solar Pump manufacturer and supplier in China. We have more than 10 years of experience in manufacturing pumps. 3inch 200w-1100w Solar Pump With Plastic Impeller is suitable for groundwater extraction from deep wells,and also for water extraction projects of rivers,reservoirs and canals.Moreover,it is mainly used for irrigation of farmland and water for human and livestock in plateau mountainous areas,and it can also be used for the drainage of cities,factories,railways,mines and construction sites.

Send Inquiry    PDF DownLoad

Product introduction:

Complete industrial chain--from castings to finished pumps.
Strong R&D team,unique 3 steps tests,including motor test,pump test,and overall unit test to guarantee the quality.
Market network:Covering more than 50 countries and areas around the world.
Provide good pre-sales guidance and after-sales service.

3inch 200w-1100w Solar Pump With Plastic Impeller

Categories

DC Brushless Submersible Solar Pump

Brand

JODU

Model

3JDC Series 200W-1100W

Type

3 inch solar pump with plastic impeller

Material

stainless steel

Package type

wooden case

Application

Poultry Farming,Irrigation,Household water intake

Warranty

2 years

Certificate

CE

3JDC4 SERIES

Brushless Solar Pump With Plastic Impeller


Model Max. Flow
(m3/h)
Max.Head
(m)
Voltage
(V)
Power
(W)
Outlet
(inch)
Cable
(m)
Solar Panel
(For reference)
3JDC4-20-24-200 4 20 DC24 200 1.25 2 270W*1
3JDC4-27-30-250 4 27 DC30 250 1.25 2 340W*1
3JDC4-47-48-400 4 47 DC48 400 1.25 2 270W*2
3JDC4-67-48-600 4 67 DC48 600 1.25 2 400W*2
3JDC4-67-72-600 4 67 DC72 600 1.25 2 270W*3
3JDC4-87-72-750 4 87 DC96 750 1.25 2 340W*3
3JDC4-87-110-750 4 87 DC96 750 1.25 2 340W*3
3JDC4-127-110-1100 4 127 DC110 1100 1.25 2 340W*4

3JDC6 / 3JDC5.5 SERIES

Brushless Solar Pump With Plastic Impeller


Model Max. Flow
(m3/h)
Max.Head
(m)
Voltage
(V)
Power
(W)
Outlet
(inch)
Cable
(m)
Solar Panel
(For reference)
3JDC5.5-33-48-400 5.5 33 DC48 400 1.25 2 270W*2
3JDC5.5-50-48-600 5.5 50 DC48 600 1.25 2 340W*2
3JDC5.5-50-72-600 5.5 50 DC72 600 1.25 2 270W*3
3JDC6-65-72-750 6 65 DC72 750 1.25 2 340W*3
3JDC6-65-110-750 6 65 DC110 750 1.25 2 340W*3
3JDC6-90-110-1100 6 90 DC110 1100 1.25 2 340W*4

3JDC8 SERIES

Brushless Solar Pump With Plastic Impeller


Model Max. Flow
(m3/h)
Max.Head
(m)
Voltage
(V)
Power
(W)
Outlet
(inch)
Cable
(m)
Solar Panel
(For reference)
3JDC7.5-46-72-750 7.5 46 DC72 750 1.5 2 340W*3
3JDC7.5-46-110-750 7.5 46 DC110 750 1.5 2 340W*3
3JDC8-70-110-1100 8 70 DC110 1100 1.5 2 340W*4


1 OUTLET
11 STATOR
21 IMPELLER
2 O-RING
12 LOWER COVER
22 PUMP FRAME
3 UPPER BUCKLE
13 OIL CUP
23 SHAFT SLEEVE
4 PUMP SHAFT
14 OILER CAP
24 BRACKET
5 CABLE LAYERING
15 JUMP RING
25 RABBER BEARING
6 COUPLING
16 VALVE ELEMENT
26 INLET
7 LOWER BUCKLE
17 VALVE SEAT
27 NET BAR
8 MECHANICAL SEAL
18 CABLE
28 JILT SAND SEAT
9 BEARING
19 DIFFUSER
29 OIL CYLINDER
10 ROTOR
20 WEARPROOF RING
30 O-RING




31 MOTOR FRAME

Feature And Application Of 3inch 200w-1100w Solar Pump With Plastic Impeller :
MPPT solar pump inverter,the highest solar utilization rate

Waterproof and sealed:double sealing effect,Alloy mechanical seal,
long life and reliable operation

Digital display of power,voltage,current, speed and other working conditions

High/low voltage protection,
Over current/overload protection

HOW TO CHOOSE A PUMP

Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?

Compare your requirement with our product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according to different flow and prices.

Calculate Method:

Actual Pump Head: H1+H2+H3/10

--------------------------------------

For Example:

H1=10m    H2=30m     H3=50m

H=H1+H2+H3/10

Actual Pump Head is 45m
